Gas Insulated
Switchgear
Hyundai Electric entered the circuit breaker market in 1984, and has maintained its position as a domestic leader in the field for the past 30 years, supplying its products to 40 countries worldwide.
Using the latest facilities and production systems in line withthe latest international standards, we have the capacity to produce Gas Insulated Switchgear up to 800 kV, the maximum rated voltage in Korea.
Due to their small installation space requirement and low-noise, low-electromagnetic radiation properties, our high-voltage circuit breakers are recognized for their high quality and enjoy a large market share in the Middle East, particularly Saudi Arabia.
Product features
- Structural safety and high reliability
- User-friendly design for convenient operation
and monitoring by user - Wide range of specifications
- Flexible design and small installation space requirement
- Long lifetime and minimal maintenance required
- Stability of Structure
Stability of Structure & Reliability - Flexibility of Plan
easy customizing - Maintenance Minimisation
long life

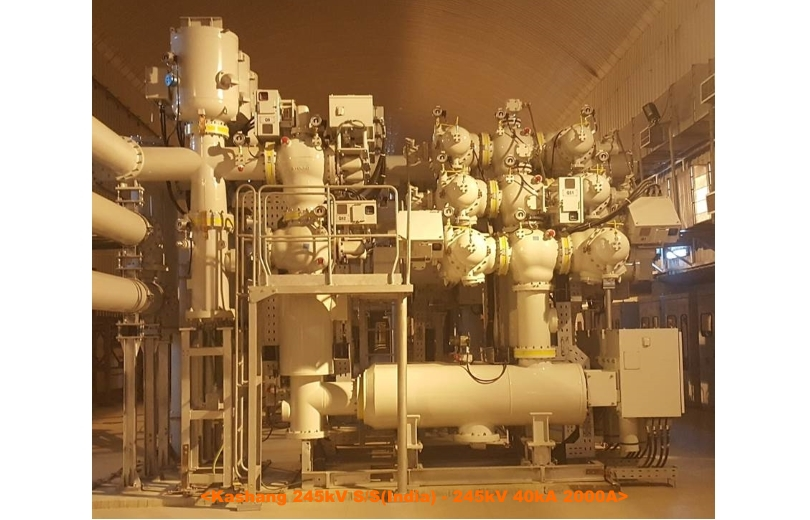

Gallery
Product specifications
| Image | Spec | 25.8kV |
|---|---|---|
 |
Type | WIB 25.8-4-3,150 |
| rated voltage(kVrms) | 25.8 | |
| rated breaking current(kArms) | up to 40 | |
| rated current(Arms) | up to 3,150 | |
| rated frequency(Hz) | 60 | |
| power frequency withstand voltage(kVrms) |
70 | |
| lightning impulse withstand voltage |
150 | |
| Switching impulse withstand voltage |
- | |
| Rated gas pressure(MPa) |
0.12 |
| Image | Spec | 72.5kV GIS | |||
|---|---|---|---|---|---|
 |
Type | 72.5SP | 72.5SP-1 | 72.5SP-2 | 72.5 SP-2* |
| rated voltage(kVrms) | 72.5 | ||||
| rated breaking current(kArms) |
20 | 31.5 | 20 | 31.5 | |
| rated current(Arms) | 2000* | ||||
| rated frequency(Hz) | 60 | 50/60 | 60 | 50/60* | |
| power frequency withstand voltage (kVrms) |
140 | 140 | 160 | 140 / 160* | |
| lightning impulse withstand voltage |
325 | 325 | 350 | 325/375* | |
| Switching impulse withstand voltage |
- | ||||
| Rated gas pressure(MPa) |
0.5 / 0.3 | 0.6 / 0.4 | 0.5 / 0.3 | 0.6 / 0.4 | |
| Image | Spec | 145kV GIS | |
|---|---|---|---|
 |
Type | 145SP-1 | 145SP-3 |
| rated voltage(kVrms) | 145 | ||
| rated breaking current(kArms) |
40 | ||
| rated current(Arms) | 3150 | ||
| rated frequency(Hz) | 50/60 | ||
| power frequency withstand voltage (kVrms) |
275 | ||
| lightning impulse withstand voltage |
650 | ||
| Switching impulse withstand voltage |
- | ||
| Rated gas pressure(MPa) |
0.6 / 0.4 | ||
| Image | Spec | 170kV | |
|---|---|---|---|
 |
Type | 170SR | 170SR |
| rated voltage(kVrms) | 170 | 170 | |
| rated breaking current(kArms) |
up to 50 | 40 | |
| rated current(Arms) | 2,000 / 3,000 / 4,000 | 2,000 /3,150 | |
| rated frequency(Hz) | 50 / 60 | 50 | |
| power frequency withstand voltage (kVrms) |
325 | 325 | |
| lightning impulse withstand voltage |
750 | 750 | |
| Switching impulse withstand voltage |
- | - | |
| Rated gas pressure(MPa) |
0.6 / 0.4 | 0.6 / 0.4 | |
| Image | Spec | 245kV |
|---|---|---|
 |
Type | 300SR |
| rated voltage(kVrms) | 245 | |
| rated breaking current(kArms) |
50/63 | |
| rated current(Arms) | 4,000 | |
| rated frequency(Hz) | 50 / 60 | |
| power frequency withstand voltage (kVrms) |
460 | |
| lightning impulse withstand voltage |
1,050 | |
| Switching impulse withstand voltage |
850 | |
| Rated gas pressure(MPa) |
0.6 / 0.5 |
| Image | Spec | 362kV | ||
|---|---|---|---|---|
 |
Type | 362SL | 362SR | 362SU |
| rated voltage(kVrms) | 362 | |||
| rated breaking current(kArms) |
40 | 50 | 63 | |
| rated current(Arms) | 4,000 | 4,000 | 8,000 | |
| rated frequency(Hz) | 60 | |||
| power frequency withstand voltage (kVrms) |
450 | |||
| lightning impulse withstand voltage |
1,175 | |||
| Switching impulse withstand voltage |
950 | |||
| Rated gas pressure(MPa) |
0.6 / 0.5 | 0.6 / 0.5 | 0.7 / 0.4, 0.5 | |
| Image | Spec | 420/550kV |
|---|---|---|
 |
Type | 550SR |
| rated voltage(kVrms) | 420/550 | |
| rated breaking current(kArms) |
63 | |
| rated current(Arms) | 4,000 | |
| rated frequency(Hz) | 50 / 60 | |
| power frequency withstand voltage (kVrms) |
650/710 | |
| lightning impulse withstand voltage |
1,425/1,550 | |
| Switching impulse withstand voltage |
1,050/1,175 | |
| Rated gas pressure(MPa) |
0.7 / 0.45 |
| Image | Spec | 800kV |
|---|---|---|
 |
Type | 800SR |
| rated voltage(kVrms) | 800 | |
| rated breaking current(kArms) |
50 | |
| rated current(Arms) | 8,000 | |
| rated frequency(Hz) | 50 / 60 | |
| power frequency withstand voltage (kVrms) |
830 | |
| lightning impulse withstand voltage |
2,250 | |
| Switching impulse withstand voltage |
1,425 | |
| Rated gas pressure(MPa) |
0.7 / 0.4 |
Standards and Certification
All GIS lines are certified by highly accredited international certified testing agencies (KEMA, CESI, KERI, MELCO, etc.).
