Marine Solution

Solutions that supply electrical systems to ships and offshore facilities

Applicable areas

Ship Automation
systems

Hyundai Electric provides automation systems that incorporate ICT systems into various equipment on board, enabling environmental friendly, economical, safe, and efficient operation.

Contact Info Download

Product features

  • Optimized solution for marine automation systems
  • Intuitive user interface
  • Flexible connectivity and scalability
  • Maximized convenience through remote diagnosis and maintenance
  • Ship energy analysis indication
  • Product Optimization
    Optimized solution for marine automation systems
  • Use Convenience
    Intuitive user interface
  • Extensibility
    Flexible connectivity and scalability

Gallery

Product specifications

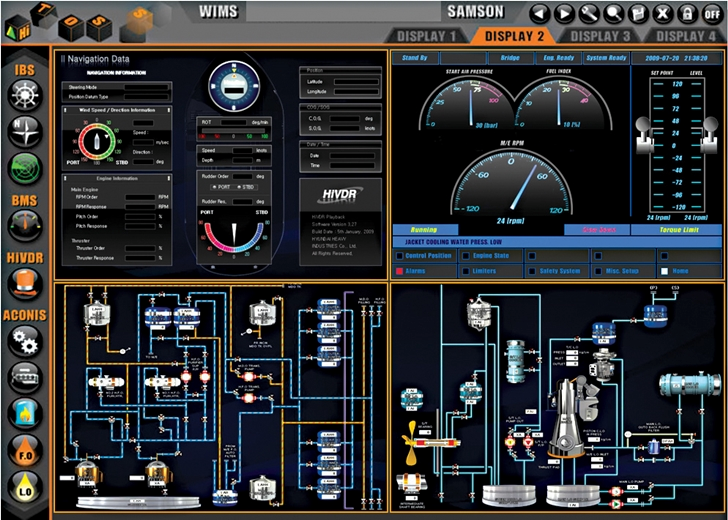

Image Spec AMS(ACONIS-DS)
Summary Hyundai ACONIS is a cost effective yet powerful system that monitors and controls the state of various machinery and
equipment on board. The newly developed ACONIS-DS
integrates AMS, BMS, IBS, VDR, and other systems into a
single network to enable web-based monitoring of the ship’s state anywhere onboard, as well as onshore on real-time and remote maintenance.
Key
features
  • User-friendly system interface
  • Sophisticated graphical user interface
  • Dual redundant system
  • Remote diagnosis and maintenance
  • Integrated web-based monitoring
  • E-Drawing (electronic help function)
Image Spec VDR(HiVDR-E)
Package
  • Data Management Unit(HiDMU)
  • Power Supply Unit(HiUPS)
  • emote Alarm Module(HiRAM)
  • Protective Capsule(HVR)
Key
functions
  • Real-time recording of ship’s navigation communication
    system and radar audio signals which can be used for
    investigation purposes in case of accidents (similar to an
    aircraft’s black box)
  • Multi-function display - maximizes display layout flexibility
    and survivability
  • 16 NMEA Ports
  • 16 Analogue Inputs
  • 16 Digital Inputs
  • Interface for TWO(2) VHF
  • Five(5) Microphones
  • Storage in Protective Capsule(12h)
  • Playback Software
Image Spec IBS(HTiBS)
Summary Hyundai-Transas Intelligent Bridge System (HTiBS) is an integrated
navigation system which connects all the key navigational
equipment (radar, ECDIS, Conning). We provide solutions integrating the navigational systems including a multi-function display that
provides in a single glance a range of information for safe navigation.
Key
features
  • User-centric environment - maximizes operating convenience
  • Multi-function display - maximizes display layout flexibility and
    survivability
  • Integrity check - ensures system stability and reliability
  • Overlapping function - greater purification/precision and user error
    prevention
  • Consistent bridge layout design and simple structure - easy
    maintenance
  • World’s first type approval
Package RADAR
System		 ARPA, AIS, and other information prevent
collisions in advance and enable safe navigation. X band radar (short range at 9 GHz) and S band
radar (long range at 3 GHz) are available.
CONNING
System		 Instrument data needed for navigation, such as
date and time, vessel location, vessel speed,
course, wind direction, etc., is gathered from
various systems onto one screen for optimal
navigation.
ECDIS The Electronic Chart Display and Information
System is a master and slave dual system which
can be used in place of paper charting. It provides optimal navigation planning and recording for
safe, convenient navigation.
Image Spec Hyundai Intelligent Watch Monitoring System
Summary HiWMS-PE is the standard for Bridge Navigational Watch
Alarm Systems (BNWAS) which is mandatory equipment for
ships to prevent marine accidents due to the negligence of
navigating officers. It includes the functional standards
required by the International Maritime Organization (IMO).
Key
features
  • 7” LCD touch screen
  • Motion detection (motion sensor monitoring)
  • 3 communication ports as standard, 4 available
  • Remote diagnosis and maintenance functions
  • Standard and low-cost types available
  • Maximized user convenience for safety on board
Key
features
  • Monitoring of watch standers’ status with periodic check-in
    requirements according to watch time alert settings
  • Enables prompt response to perilous situations by sending
    information on major system or equipment malfunctions to
    the watch stander and navigating officers
  • Alerts the captain and other navigating officers in the event
    of a warning from the bridge with no response from the
    watch stander
  • Function for officers on standby to call watch stander

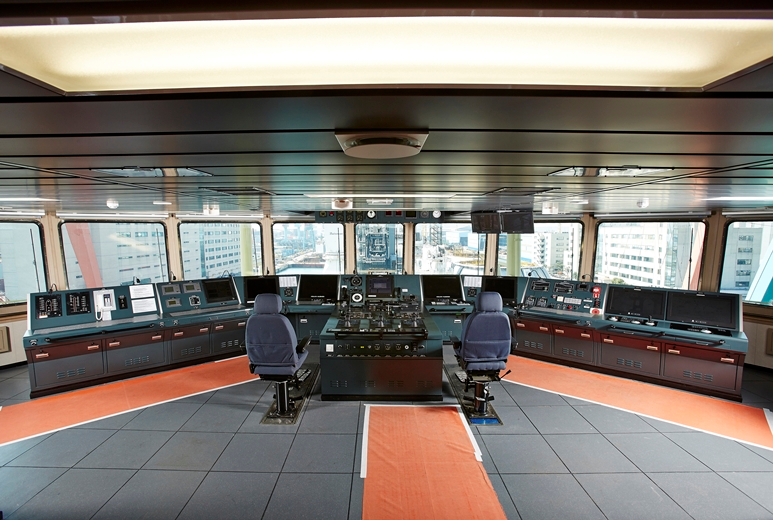

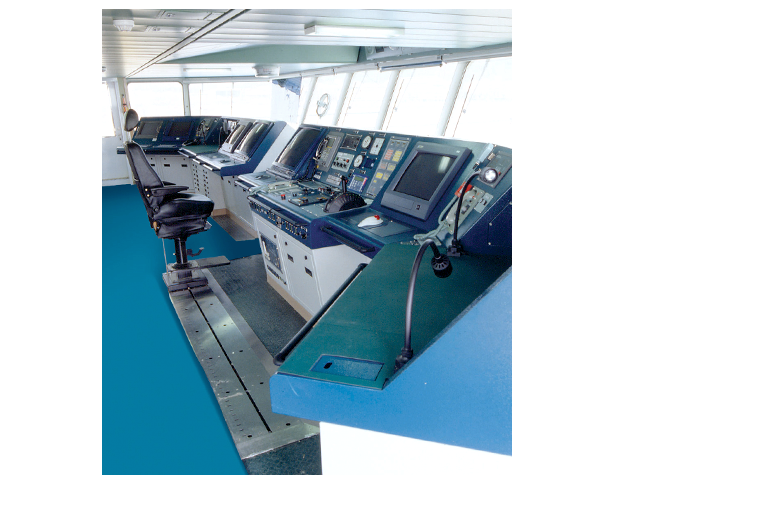

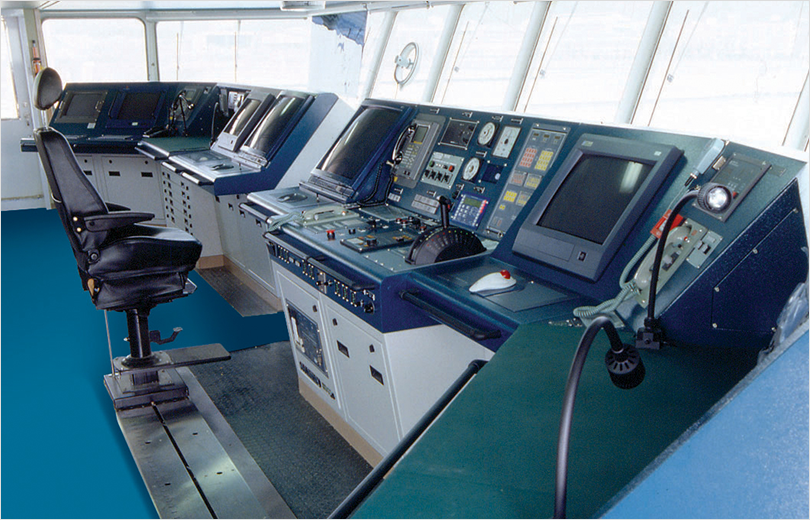

Image Spec Ship console
Summary Demand for eco-friendly ships is increasing due to more
stringent environmental standards. HHI EES provides the
following control solutions for LNG carriers.
Ergonomically and economically designed console for easy
and effective control of equipment. Convenient operation and monitoring, as well as easy replacement and repair during equipment maintenance
Key
features
  • User-friendly system interface
  • Sophisticated graphical user interface
  • Dual redundant system
  • Remote diagnosis and maintenance
  • Integrated web-based monitoring
  • E-Drawing (electronic help function)
Package
  • Bridge Control Console
  • Engine Control Console
  • Bridge Wing Control Console
  • Cargo Control Console
  • Radio Control Console
  • Group Control Panel
  • Over Head Panel
Spec LNG IAS/FGSS
Summary Demand for eco-friendly ships is increasing due to more stringent environmental standards. HHI EES provides the following control solutions for LNG carriers.
Key
features		 IAS(Integrated Automation System)
  • Integrated automation control system for LNG carriers including monitoring of equipment, remote control,
    safety control, etc.
  • Integration of cargo control (cargo, vapor, gas management), machinery (fuel oil, fuel gas, water cooling
    system), ballast system, power management system, etc.
  • Applicable areas - LNG carriers, bunkering
  • HP/LP gas supply control system required for LNG propulsion engines that use LNG as fuel
  • Control system for LNG fuel tank, supply pump, HP pump, fuel gas heating system, etc.
  • Applicable areas - LNG propulsion vessels
