Low Voltage
Inductuin Motor
Next Generation Peformance Redefined
Continuous design evolutions for Electric Motor
developed through years of experience, innovation and
reliability in building top quality
Our state-of-the-art manufacturing facilities guarantee
that all products meet customers’ requirements with
regard to cost, delivery and quality
Product features
- Realization of the highest efficiency through FEM, CFD, and HARMONIC analysis
- Optimized structural design with low noise and low vibration
- Improve the Motor Life
- Aerodynamic compact design
- Energy saving & delivery
Reduced power costs through premium efficiency operation - Asset values & Local air pollution
Longer motor life due to low temperature rise - Industrial productivity & Resource management
Various & customized product Line-up and quality assurance

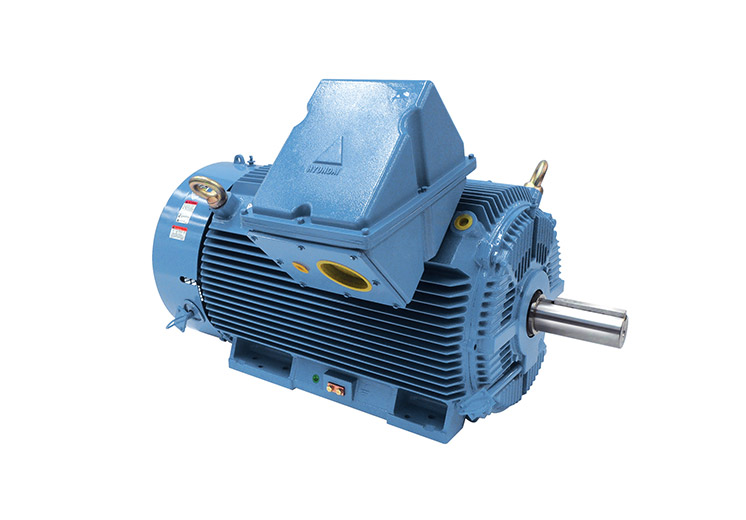

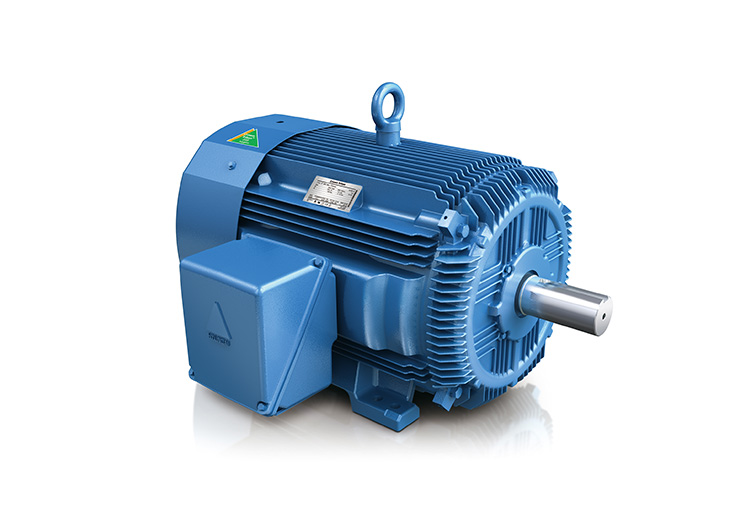

Gallery
Product specifications
[KS/IEC]
| Image | Spec | TEFC Motor - Premium Efficiency |
|---|---|---|
 |
Output Range | 0.75 - 375 kW (1 - 500 HP) |
| Voltage | ~ 600 V | |
| Frequency | 50 Hz, 60 Hz | |
| Number of Poles | 2, 4, 6, 8 | |
| Degree of Protection |
IP55, 56, 65, 66 | |
| Insulation Class | F, H | |
| Frame size | 90~400Fr. |
| Image | Spec | Ex eb IIC T3/ec IIC T3 or T4 - TEFC - Premium Efficiency |
|---|---|---|
 |
Output Range | 0.2 - 90kW(eb), 0.75 - 550kW(ec) |
| Voltage | ~ 690 V | |
| Frequency | 50 Hz, 60 Hz | |
| Number of Poles | 2, 4, 6, 8 | |
| Degree of Protection |
IP44, 54, 55 | |
| Insulation Class | F | |
| Frame size | eb : 80~250Fr. / ec:~400Fr. |
| Image | Spec | Ex d/de/db/dbeb IIB/C T4 - TEFC - Premium Efficiency |
|---|---|---|
 |
Output Range | 0.2 - 200 kW (0.3 - 266 HP) |
| Voltage | ~ 690 V | |
| Frequency | 50 Hz, 60 Hz | |
| Number of Poles | 2, 4, 6, 8 | |
| Degree of Protection |
IP44, 54, 55 | |
| Insulation Class | F | |
| Frame size | IIB : 71~280Fr. IIC : 90~280Fr. |
| Image | Spec | Drip-proof Motor |
|---|---|---|
 |
Output Range | 0.75 - 750 kW (1 - 1,000 HP) |
| Voltage | ~ 690 V | |
| Frequency | 50 Hz, 60 Hz | |
| Number of Poles | 2, 4, 6, 8 | |
| Degree of Protection |
IP22, 23 | |
| Insulation Class | F, H | |
| Frame size | 71~400Fr. |
[NEMA]
| Image | Spec | TEFC - Crown Triton Series Motor (Severe Duty) |
|---|---|---|
 |
Output Range | 1 - 250 HP |
| Voltage | 208-230/460, 460 and 575V | |
| Frequency | 50 Hz, 60 Hz | |
| Number of Poles | 2, 4, 6 | |
| Degree of Protection |
IP55 | |
| Insulation Class | F | |
| Frame size | 143T~449T | |
| Hazadous Area Classification |
Class I, Division 2, Groups A, B, C & D; Class II, Division 2, Groups E, F & G (CSA certified/Group E : 326T and below)) |
| Image | Spec | Quarry & Crusher Duty Motor |
|---|---|---|
 |
Output Range | 7.5 - 250 HP |
| Voltage | 230/460V (7.5-150HP) 460V(150-250HP) |
|
| Frequency | 50 Hz, 60 Hz | |
| Number of Poles | 4, 6 | |
| Degree of Protection |
IP55 | |
| Insulation Class | F | |
| Frame size | 254T~449T | |
| Hazadous Area Classification |
Class I, Division 2, Groups A, B, C & D Class II, Division 2, Groups E, F & G (CSA certified/Group E : 326T and below)) |
| Image | Spec | IEEE841 Motor |
|---|---|---|
 |
Output Range | 1 - 250 HP |
| Voltage | 208-230/460V | |
| Frequency | 50 Hz, 60 Hz | |
| Number of Poles | 2, 4, 6 | |
| Degree of Protection |
IP54, 55, 56, 65, 66 | |
| Insulation Class | F, H | |
| Frame size | 143T~449T | |
| Hazadous Area Classification |
Class I, Division 2, Groups A, B, C & D Class II, Division 2, Groups E, F & G (CSA certified/Group E : 326T and below) |
| Image | Spec | Crown Triton Series Motor - Explosion Proof |
|---|---|---|
 |
Output Range | 1 - 250 HP |
| Voltage | 208-230/460V (1-125HP) 460V(150-250HP) |
|
| Frequency | 50 Hz, 60 Hz | |
| Number of Poles | 2, 4, 6 | |
| Degree of Protection |
IP54 | |
| Insulation Class | F | |
| Frame size | 143T~449T | |
| Hazadous Area Classification |
Class 1, Division 1, Groups C and D (UL Certification) |
| Image | Spec | Crown Triton Series Motor - Severe Duty Large Frame |
|---|---|---|
 |
Output Range | 250 - 600 HP |
| Voltage | 460 V | |
| Frequency | 50 Hz, 60 Hz | |
| Number of Poles | 2, 4, 6 | |
| Degree of Protection |
IP55 | |
| Insulation Class | F, H | |
| Frame size | L449TS~5812 | |
| Hazadous Area Classification |
Class I, Division 2, Groups A, B, C & D Class II, Division 2, Groups F & G |
Standards and Certification
Hyundai motors are products that have received worldwide efficiency certifications and safety standards certifications.
In addition, we deliver after verification to meet the industry certification standards of world class classification agencies.
(Lolyd's Register, ABS, DNV, KR, IEC, NEMA, CSA, IEEE, KS, JEC, AS)
|
KS
|
ISO9001
|
ISO14000
|
IEC
|
CE
|
| Certificate for Explosion Proof | Ship Classification Societies | ||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
